DIN      1
 ISO      2339
    s

 Werkstoff/       Stahl
 strength       steel
    s
 Oberfläche/
 surface

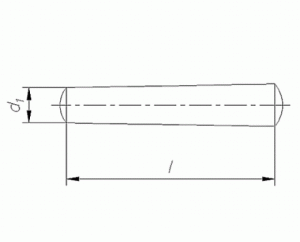

Gedrehte Kegelstifte, Form B
Taper pins, type B


 d1 h10   1,5   2   3   4   5   6   8   10   12   16   20
 c max.   0,23   0,3   0,45   0,6   0,75   0,9   1,2   1,5   1,8   2,5   3

Maße in mm


Nicht aufgeführte Abmessungen und/oder Ausführungen bitte anfragen.
